Epoxy Quartz Self-Leveling Flooring System
Epoxy Quartz Self-Leveling Flooring is a seamless, durable resin flooring system made of epoxy resin and colored quartz sand. It offers high abrasion resistance, chemical resistance, impact resistance, and anti-slip performance, with a decorative and hygienic finish. Widely used in hospitals, shopping malls, laboratories, warehouses, and factories, it is ideal for commercial and industrial flooring applications.
Thickness: 3.0–5.0 mm
Service Life: 10+ Years
High Compressive Strength
High Abrasion & Impact Resistance
Easy to Clean & Hygienic Surface
Dustproof & Anti-Pollution Performance
Excellent Chemical Resistance (Acids, Alkalis, Oils)
Seamless Decorative Finish
Creates a smooth, elegant, and visually appealing surface.
Excellent Slip Resistance
Provides enhanced safety in wet and dry environments.
Strong Adhesion
Excellent bonding toconcrete and long-term perfommance.
Chemical Resistance
Resists oils, chemicals,acids,alkalis and cleaning agents.
High Wear Resistance
Excellent performance inhigh traffic and heavy duty areas.
Hygienic & Easy to Clean
Non-porous surface,resists bacteria and easyto maintain.
Custom Color Options
Various colors andfinishes to match your project design.
Long Service Life
The service life is more than 10 years
Epoxy Quartz Self-Leveling Flooring System Technical Specifications
Epoxy Quartz Self-Leveling Flooring System is a seamless, decorative, and high-performance resin flooring solution designed for commercial and industrial environments requiring excellent durability, chemical resistance, abrasion resistance, and hygienic surface performance. It is widely used in hospitals, shopping malls, laboratories, warehouses, and manufacturing facilities.
| Technical Property | Performance Value |
|---|---|
| Total Volatile Organic Compounds (TVOC) Emissions | 3.7 mg/m³ |
| Formaldehyde Emission | Not detected (< 0.01 mg/m³) |
| Slip Resistance (Dry Friction Coefficient) | 0.61 |
| Tensile Bond Strength | 4.2 MPa |
| Compressive Strength | 57 MPa |
| Shore Hardness (Type D) | 79 |
| Initial Flowability | 158 mm |
| Abrasion Resistance (750g / 500r) | 0.021 g |
| Heavy-Duty Impact Resistance (1000g Steel Ball) | No cracks or coating peeling |
| Water Resistance (168h) | No abnormality; slight discoloration may recover after 2 hours |
| Chemical Resistance | No blistering or peeling; slight discoloration allowed |
Warehouses
Factory Workshops
High-Speed Rail Stations&Subway&Airport
Showrooms&Office&Commercial Spaces
Hospitals&School
Laboratories
Parking Areas
Electronic Factories
Food Industry

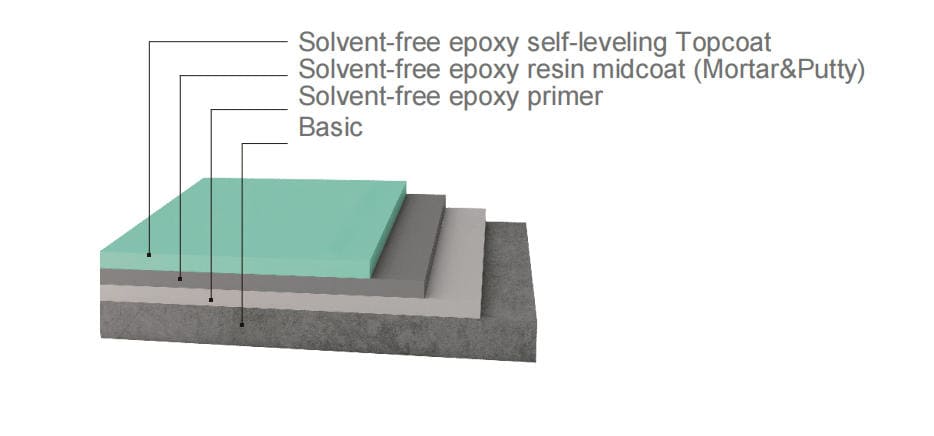

Epoxy Colored Quartz Flooring Installation Process
1.Surface Preparation
Grinding, cleaning, and repairing the concrete substrate to ensure a strong foundation.
2.Epoxy Primer
Apply epoxy primer to seal the concrete surface and improve adhesion.
3.Quartz Mortar Layer
Apply epoxy mortar mixed with 80–120 mesh quartz sand to enhance strength and impact resistance.
4.Epoxy Putty Layer
Fill and level surface imperfections to create a smooth substrate.
5.Colored Quartz Topcoat
Apply solvent-free epoxy colored quartz coating and finish with spike roller for a seamless decorative surface.
1.Epoxy Primer Coverage: 0.15–0.20 kg/m²
2.Quartz Mortar Layer Coverage: 0.25–0.50 kg/m²
3. Epoxy Putty Layer Coverage: 0.15–0.20 kg/m²
4.Colored Quartz Topcoat Coverage: 3.0–3.5 kg/m²
1.What Is Epoxy Quartz Self-Leveling Flooring?
Epoxy Quartz Self-Leveling Flooring is a high-performance seamless flooring system that uses epoxy resin as the binder and colored quartz sand as the aggregate. It combines the durability of epoxy resin with the decorative appeal of quartz aggregates, offering excellent wear resistance, slip resistance, and easy maintenance.
2.What Is the Difference Between Epoxy Quartz Self-Leveling and Regular Epoxy Self-Leveling Flooring?
- Decorative Appearance: Epoxy quartz flooring offers a wide range of colors and textures, including marble and terrazzo-style effects, while regular epoxy self-leveling flooring is typically available in solid colors.
- Slip Resistance: The quartz aggregates create a slightly textured surface, providing better slip resistance than a smooth epoxy surface.
- Cost: Due to the use of decorative quartz aggregates and specialized installation, epoxy quartz self-leveling flooring is generally more expensive than regular epoxy self-leveling flooring.
3.Where Is Epoxy Quartz Self-Leveling Flooring Used?
It is ideal for spaces requiring both high aesthetics and durability, including:
- Pharmaceutical and food processing cleanrooms
- Hospitals
- Showrooms and exhibition spaces
- Laboratories
- High-end commercial spaces
- Residential basements
- Living rooms
- Kitchens
4.How Wear-Resistant Is Epoxy Quartz Self-Leveling Flooring?
With a Mohs hardness of 6+ and compressive strength of up to 79 MPa, the flooring can withstand heavy forklifts and heavy loads. Its excellent abrasion resistance can achieve a mass loss of ≤0.02 g after 750 g/500 cycles.
5.How Slip-Resistant Is Epoxy Quartz Self-Leveling Flooring?
Slip resistance can be adjusted by selecting the appropriate quartz aggregate size or applying a lightly textured surface. The system can achieve a friction coefficient of approximately 0.61, with dry slip resistance ≥0.7 and wet slip resistance ≥0.6, depending on the surface finish and test method.
